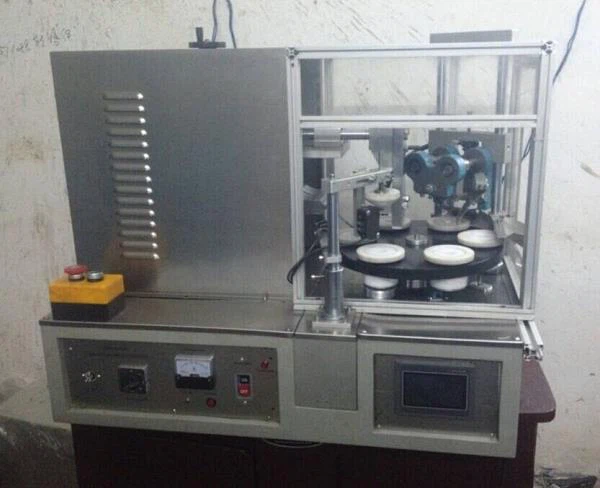

Semi Tsis Siv Neeg PLC Tswj Ultrasonic Yas Tube Sealing Tshuab
1.1. Kev piav qhia dav dav
Ua tsaug rau koj xaiv peb lub tuam txhab tsim khoom ntawm HX - 005 ultrasonic sealing tshuab, kub yas ultrasonic machining, yog siv kev sib txhuam ntawm workpiece nto ntawm lub siab zaus thiab ua rau cov molecules los ua kom sov sai, thaum no txaus tshav kub rau yaj ua hauj lwm, nres lub ultrasonic vibration, lub workpiece nto los ntawm melting thiab solidification, ua tiav kev pab cuam.
1.2.Kev ua tau zoo thiab kev qhia tshwj xeeb
HX - 005 ultrasonic sealing tshuab hloov 220v / 50hz fais fab mov rau hauv 20 KHZ lossis 15 KHZ high voltage hluav taws xob lub zog, nws txoj cai yog lub amplitude ntawm yoj crest ntawm lub longitudinal yoj kis kis tau tus mob mus rau cov ntaub ntawv tshiab thiab nyob rau hauv cov ntaub ntawv ntawm siab, ob cov ntaub ntawv yas tiv tauj nrog rau qhov chaw ntawm cov molecule collisions tsim melting, ua rau kev sib cuag nrog ib tug yas fusion, lub hom phiaj ntawm kev ua.
Nws muaj qhov zoo hauv qab no:
1.Welding ceev ceev, vuam muaj zog, zoo sealing;
2. Txhawm rau hloov cov txheej txheem ib txwm muaj, tus nqi qis, huv si tsis muaj kuab lom thiab yuav tsis ua puas tsuaj rau lub workpiece;
3. Cov txheej txheem vuam ruaj khov, vuam sib koom ua ke tsis tuaj yeem teeb tsa los ntawm cov khoom siv nrog cov maub los, kev ua haujlwm yooj yim, kev saib xyuas yooj yim.
Qauv: UFS001
Ua hauj lwm zaus: 15KHZ
Max tso zis zog: 2.2KW
Thickness ntawm lub raj yas: {{0}}.1 ~ 1.0 (txog cov khoom siv pob zeb)
Txoj kab uas hla ntawm sealing raj: 10-50mm
Kev khiav hauj lwm: Automatic / manual detection
Siab: {{0}}.2 ~ 0.8Mpa
Lub Zog: AC220V ± 5% 50HZ ± 1%
Sab nrauv Dimension: Ultrasonic Generator: 500 * 470 * 150mm
Kev them nyiaj yug: 1280 * 400 * 520mm
Qhov hnyav: 85kg
Ua haujlwm kub: 0 ~ 40 degree
Yeto Tshuab yog cov chaw tsim khoom thiab cov chaw muag khoom ntawm ntau lub tshuab. Thov so assured mus yuav cov high-end semi automatic plc tswj ultrasonic yas raj sealing tshuab nrog cov nqi sib tw los ntawm peb. Peb yuav muab kev pabcuam zoo tom qab muag thiab xa khoom sai rau koj.
